Description

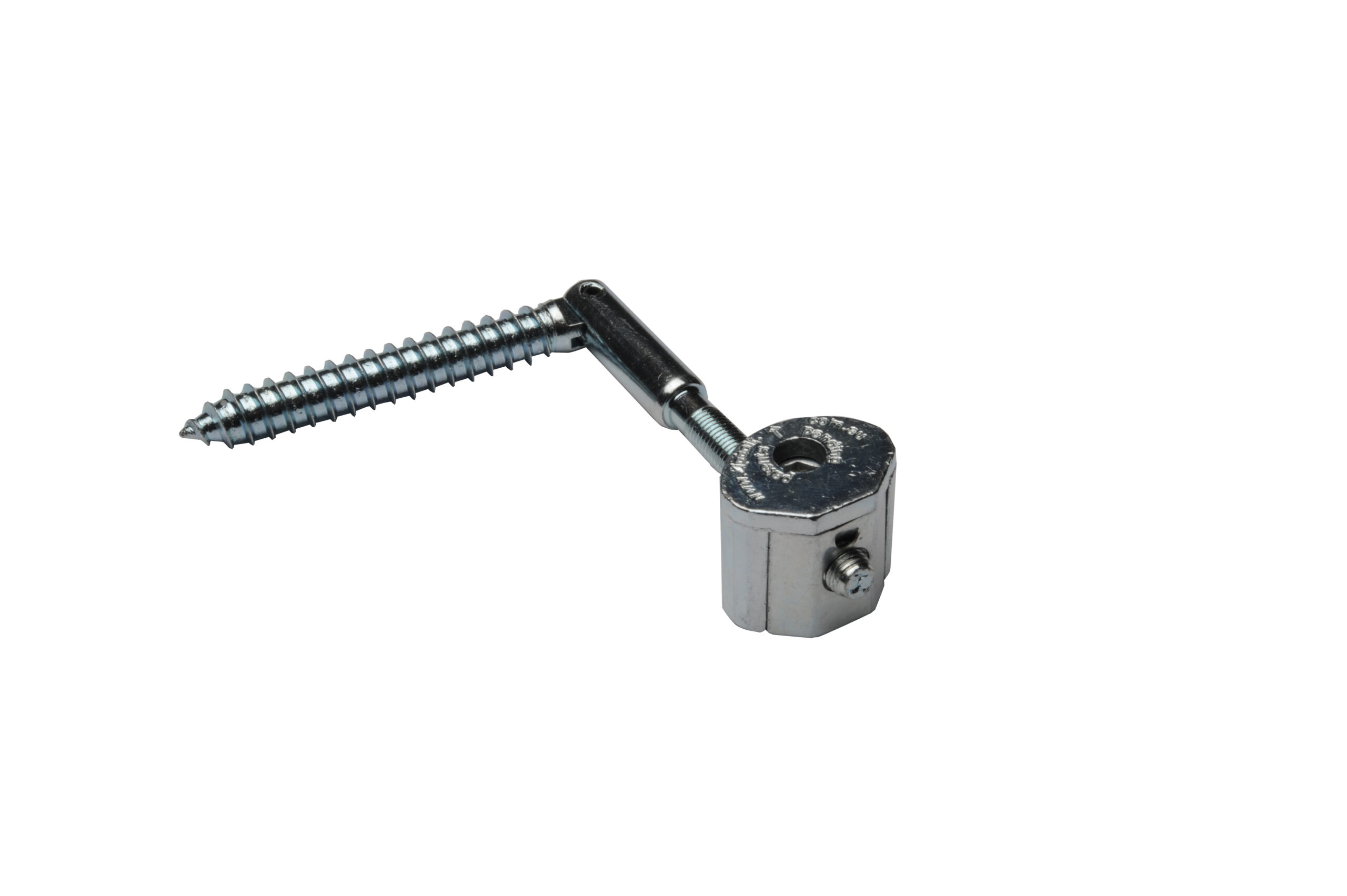

Zipbolt 11.550 Connector

Application:

– handrail structures (connecting handrail to post at an angle)
– bed structures
– shop counter structures
– many other applications



Discover the new ZIPBOLT connector; its most important feature is the ability to tighten quickly and precisely.

Mounting with the ZIPBOLT connector requires just 3 simple steps. This saves time, money, and effort.

The connector is made of hardened steel and designed for long-term use.

We recommend masking caps available in our store for these connectors.

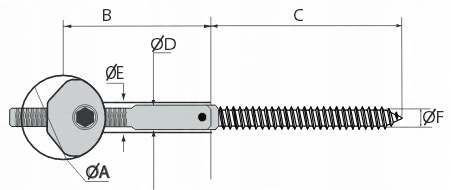

A – Ø 25 mm

B – ok 60 mm

C – ok 60 mm

D – Ø 8 mm

E – Ø 9 mm

F – Ø 6,5-7 mm



Instructional video (connecting handrail to post at an angle):
